Impact crusher

Impact crusher according to user needs, changing rotor and crushing cavity. Is a highway, water and electricity used in the construction of airports ideal aggregate processing equipment.
1、Large inlet
2、High crushing chamber
3、High hardness
4、Easy maintenance
5、Economic and reliable
6、High overall efficiency
7、High productivity
8、Mechanical wear small
Buy Now:21-58380935
Impact crusher

Descriptions:The impact crusher is widely used for secondary crushing. It has become an ideal equipment to make aggregate for highway, high-speed railway, airport and hydroelectric project.
        This kind of crusher can deal with ores and rocks with sizes below 350 mm and fracture strength within 350MPa. There are three types which are used in fields of mining, cement making and concrete making respectively. The rotor and the chambers can be customized.

Composition:It comprises the rotor, plates, impact plates, the frame, etc. The rotor is fixed on the main shaft on which four/several are fixed on it. The plates are made from heavy-duty high manganese steel or alloy steel.

Working principle:During operation, the rotor driven by the motor performs high-speed rotation. The plates installed on the rotor collide with the material. Afterwards the material will be thrown onto the impact plate for secondary crushing. The material will be crushed in different chambers with sequence until the size of the crushed material reaches required sizes. The finished products will be discharged through the discharge opening.

Advantages:1.With large feed opening and deep crushing chamber, it can deal with materials with high hardness and big size, but produces less powder. 2.Products in various sizes can be obtained by adjusting the distance between plate and the rotor 3.Compact structure, newly-designed impact plate welded on the rotor with high inertial force 4.By adjusting the distance between plates, products in various sizes and fine shape can be obtained. 5.Non-key connection: easy to operate and cost-effective 6.Wide range of applications. 7.High productivity and overall efficiency 8.Durable and heavy-duty plates.

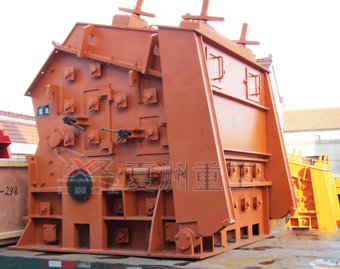

Impact crusher product map
Impact crusher product map

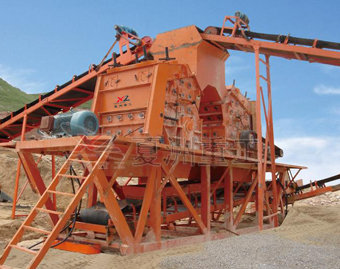

Impact crusher on-site operating plans
Impact crusher on-site operating plans

Impact Crusher Technical Data:

Model Spec of Rotor
Feed Opening Size
Max Feed Edge
Processing Capacity
Motor Power
Overall Dimensions
PF-1007 Φ1000×700 400×730 300 37-45 30-55 9.5 2400×1558×2660
PF-1010 Φ1000×1050 400×1080 350 50-80 55-75 12.2 2400×2250×2660
PF-1210 Φ1250×1050 400×1080 350 70-120 110-132 14.1 2690×2338×2890
PF-1214 Φ1250×1400 400×1080 350 130-180 132-160 18.6 2690×2688×2890
PF-1010V Φ1000×1050 400×1080 350 50-80 55-75 13.2 2400×2250×2660
PF-1210V Φ1250×1050 400×1080 350 70-120 110-132 15.2 2696×2338×2890
PF-1214V Φ1250×1400 400×1080 350 130-180 132-160 20 2690×2688×2890
PF-1310V Φ1300×1050 490×1170 350 70-120 110-160 13.5 2780×2478×2855
PF-1315V Φ1320×1500 860×1520 350 150-220 180-220 20.5 3096×3273×2667
PF-1515V Φ1500×1500 850×1580 350 220-280 280-315 29.5 3550×2835×3270
PFX-1010 Φ1000×1500 400×1080 40 20-50 90-110 9.2 2492×1821×2202
