PYFH High Performance Cone Crusher

PYFH high performance cone crusher used in sand, metal mining, cement, building materials industry and other industrial sectors for the broken and crushing ores and rocks with.
Product advantages:
1、Crushing force
2、High efficiency
3、High capacity
4、Low-cost action
5、Easy to adjust
6、The use of economic
7、Uniform particle size
Buy Now:21-58380935
PYFH High Performance Cone Crusher

Introduction:PYFH series spring cone crusher is suitable for medium crushing and fine crushing.
        It is used in sand making, mining, cement making, construction and other industries, and available to crush materials like ores and rocks.
        Base on the principles of cone crusher, it has adopted the advantageous features of spring cone crushers and HP cone crushers. That is,
        1) springs are used to guarantee safe production;
        2) the main shaft is fixed with the frame;
        3) the shaft bolt rotates simultaneously with the main shaft;
        Besides, the crusher has a simpler structure, easier and more reliable operation.

Composition:The crusher comprises the main shaft, the body frame, the mobile cone, the balancing wheel, the eccentric shaft sleeve, the hydraulic coupling, the lubrication system, the hydraulic system, the control system, etc.

Advantages:1.High reduction ratio, capacity and efficiency 2.Economical and cost-effective 3.The hydraulic system reduces downtime. 4.The blocking of water system, and the mixing of water and oil can be avoided with the lubrication system. 5.The overload system can protect the machine from iron and other materials.

Working Principle:When the motor works, the cone will rotate in a circle under the force of the eccentric sleeve. The crushing surface of the cone will come near the surface of the mantle. The material is crushed and discharged during the process.

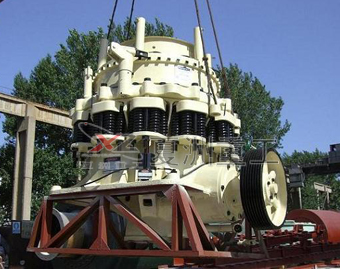

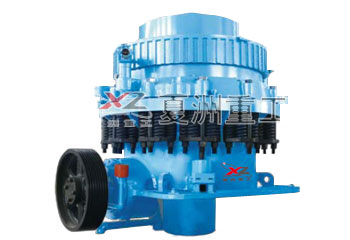

PYFH High Performance Cone Crusher product map
PYFH High Performance Cone Crusher product map

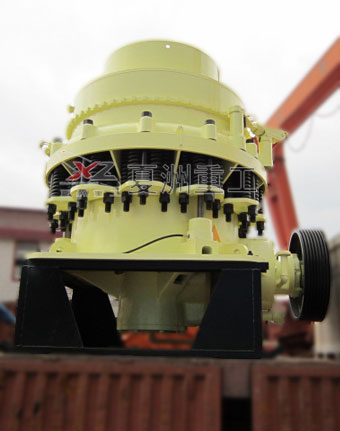

PYFH High Performance Cone Crusher action figure
PYFH High Performance Cone Crusher action figure

PYFH High Performance Cone Crusher technical parameters:

Type Model Cavity Diameter of Large End of Crushing Cone
(mm)
Adjusting Range of Discharge Opening
(mm)
Feed Opening Size of the Recommending the min.Discharge Opening (mm) Max.Feed Size
(mm)
Capacity
(t/h)
Main Motor Power
(kw)
Weight
(kg)
Overall Dimensions
(L×W×H)
(mm)
900 PYFB-0910 Standard fine type 900 9~22 102 85 45~91 75 12367 2700×2275×2115
PYFB-0917 Standard coarse type 13~38 175 150 59~163 12221
PYFB-0918 Standard super coarse type 25~38 178 150 118~163 12220
PYFD-0904 Short head fine type 3~13 41 35 27~90 13164
PYFD-0906 Short head medium type 3~16 60 51 27~100 13321
PYFD-0907 Short head coarse type 6~19 76 65 59~129 13316
1300 PYFB-1313 Standard fine type 1295 13~31 137 115 109~181 160 25695 2983×1866×3156
PYFB-1321 Standard medium type 16~38 210 178 132~253 25386
PYFB-1324 Standard coarse type 19~51 241 205 172~349 25389
PYFB-1325 Standard super coarse type 25~51 259 220 236~358 25344
PYFD-1306 Short head fine type 3~16 64 54 36~163 24922
PYFD-1308 Short head medium type 6~16 89 78 82~163 24894
PYFD-1310 Short head coarse type 8~25 105 89 109~227 25008
PYFD-1313 Short head super coarse type 16~25 133 113 209~236 25040
1600 PYFBII-1620 Standard fine type 1676 16~38 209 178 181~327 250 48364 3900×2930×3242
PYFBII-1624 Standard medium type 25~51 241 205 258~417 47791
PYFBII-1626 Standard coarse type 25~64 269 228 299~635 47748
PYFBII-1636 Standard super coarse type 38~64 368 313 431~630 47578
PYFDII-1607 Short head fine type 5~13 70 60 90~209 48202
PYFDII-1608 Short head medium type 6~19 89 76 136~281 48082
PYFDII-1613 Short head coarse type 10~25 133 113 190~336 47999
PYFDII-1614 Short head super coarse type 13~25 152 129 253~336 47842
2100 PYFBII-2127 Standard fine type 2134 19~38 278 236 544~1034 400 103582 4613×3302×4638
PYFBII-2133 Standard medium type 25~51 334 284 862~1424 103630
PYFBII-2136 Standard coarse type 31~64 369 314 1125~1814 103374
PYFBII-2146 Standard super coarse type 38~64 460 391 1252~1941 101655
PYFDII-2110 Short head fine type 5~16 105 89 218~463 104541
PYFDII-2113 Short head medium type 10~19 133 113 404~580 104353
PYFDII-2117 Short head coarse type 13~25 178 151 517~680 104193
PYFDII-2120 Short head super coarse type 16~25 203 172 580~744 102919
